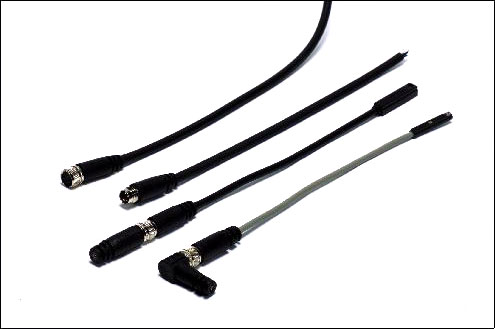

8 mm Circular Connector

HOW TO ORDER : FEMALE CIRCULAR CONNECTOR
M12 & M8 _______ R ___________ - ___________ - _________________

Pinout
3-3=3 Pin
3-2=2 Pin 		Connection
None=Straight
L=Angle type 		Jacket Material
PVC
PUR 		Cable Length
2M=2-meter (78-inch) cable
5M=5-meter (16.4-ft) Cable
EXAMPLES :
MxxxR-PUR-5M : Straight type female connector with 5-meter (197-inch) PUR cable.
MxxxRL-PVC-2M : Angle female connector with 2-meter (78-inch) PVC cable.

SPECIFICATION
Part Number
MxxxR-PVC(Straight)
MxxxRL-PVC(Right Angle)
MxxxR-PVC(Straight)
MxxxRL-PVC(Right Angle)
MxxxR-PUR(Straight)
MxxxRL-PUR(Right Angle)
MxxxR-PUR(Straight)
MxxxRL-PUR(Right Angle)
Female Pinout
Conductor Colors
1=BROWN
3=BLUE
4=BLACK
1=BROWN
3=BLUE
1=BROWN
3=BLUE
4=BLACK
1=BROWN
3=BLUE
Cable Type PVC PUR
Jacky Color
Characteristics 		Gray
Oil Resistant, Robotic Grade 		Black
Oil And Abrasion Resistance,Robotic Grade
Connector Oil resistant polypropylene (PP) body, nylon contact carrier,spacing to VDE 0110 Group C
Contacts Gold Plated Brass
Locking Nut Brass, Nickel-plated
Electrical Rating M8( 60V AC/DC 1AMmp.Max.) ; M12( 120V AC/DC 3Amp. max. )
Conductors 24 AWG. /0.2 mm,high flex Stranding,Self-Extinguishing PVC Insulation, 300V
Temperature -40˘XF ~ +176˘XF (-20˘XC ~+80˘XC)
Protection IEC 529 IP 67 / NEMA 6 (Only In Fully Locked Position) ; IEC 61076-2-101
