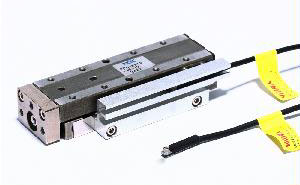

MS-01 Series

Groove :
Unit : mm

Patented
Examples
Brand SMC/Bimba Air Tac Festo Koganei
Groove
Fixed
Angle
Figures
Brand Koganei Nok New-Era New-Era
Groove
Fixed
Angle
Figures
Specification
Type
Characteristics
MS - 01R MS - 01N MS - 01P MS - 01RN MS - 01RP
Wiring 2 Wire 3 Wire
Connect Diagram
Switching logic Normally open Solid state output, Normally open Normally open
Output Reed switch NPN Sinking PNP Sourcing Reed switch
Lead wire type Horizontal
Load voltage 5 ~ 120V DC/AC 4.5~28V DC
Load current 100mA Max. 50mA Max.
Current consumption --- 10mAMax.@ 24V 5mA @ 24V
Voltage drop 2.5V Max. 0.5V Max.@ 50mA (Resistive load) 0.1V Max.
Leakage current --- 50μA Max. ---
Frequency 200Hz 1000Hz 200Hz
Shock 30G 50G 30G
Vibration 90 m/s2 (9G), Double amplitude 1.5 mm
Insulation resistant DC 500V 100M Ω (Lead wire to case)
Withstand voltage AC 1000V (50/60Hz) 1minute (Lead wire to case)
CE & Protection IP EN60947-5-2      IEC529   IP67(NEMA 6)
Indicator Red LED
Cable 2.6,2C,Gray Pur 2.6,3C,Black Pur
Temperature range -10 ~ 70 ℃
Protection circuit --- Reverse polarity; Surge suppression ---
Dimensions
Reed Switch:
MS-01R
MS-01R-QD8
MS-01R-QD12
Solid N:
MS-01N
MS-01N-QD8
MS-01N-QD12
Solid P:
MS-01P
MS-01P-QD8
MS-01P-QD12
M8 & M12-Connector
2-Wire QD Link 2-Wire E-QD Link 3-Wire QD Link
