| MS-30
Series |
| Groove
: |
 |
|
|
|
|
|
| Specification |
| |
MS
- 30R |
MS
- 30N |
MS
- 30P |
| Wiring |
2
Wire |
3
Wire |
| Connect
Diagram |
 |
 |
 |
| Switching
logic |
Normally
open |
Solid
state output, Normally open |
| Output |
Reed
switch |
NPN
Sinking |
PNP
Sourcing |
| Lead
wire type |
Horizontal |
| Load
voltage |
5
~ 240V DC/AC |
5~28V
DC |
| Load
current |
100mA
Max. |
200mA
Max. |
| Switching
rating |
10W
Max. |
6W
Max. |
| Current
consumption |
--- |
19mA
Max. @ 24V |
16mA
Max. @ 24V |
| Voltage
drop |
2.5V
Max. @ 100mA DC |
1.5V
Max.@ 200mA (Resistive load) |
| Leakage
current |
--- |
0.01mA
Max. |
| Frequency |
200Hz |
1000Hz |
| Shock |
30G |
50G |
| Vibration
|
90
m/s2 (9G), Double amplitude 1.5 mm |
| Insulation
resistant |
DC
500V 100M Ω (Lead wire to case) |
| Withstand
voltage |
AC 1000V (50/60Hz) 1minute (Lead wire to case) |
| CE
& Protection IP |
EN60947-5-2
IEC529 IP67(NEMA 6) |
| Indicator
|
Red
LED |
Red
LED |
Green
LED |
| Cable |
2.8 ,2C,Gray
PVC |
2.8,3C,Black
PVC |
| Temperature
range |
-10
~ 70 ℃ |
| Protection
circuit |
--- |
Reverse
polarity; Surge suppression, Short circuit |

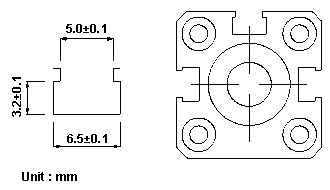

| Dimensions |
 |
 |
|
| |
|
|
|
