MS-76 Series

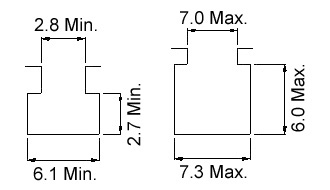

Groove :

Patented
Examples
Brand SMC Parker Festo Taiyo
Groove
Fixed
Angle
Figures
Brand CKD Norgren Chanto Chanto
Groove
Fixed
Angle
Figures
Specification
Type
Characteristics
MS - 76R MS - 76N MS -76P MS - 76RN MS - 76RP
Wiring 2 Wire 3 Wire
Connect Diagram
Switching logic Normally open Solid state output, Normally open Normally open
Output Reed switch NPN Sinking PNP Sourcing Reed switch
Lead wire type Horizontal
Load voltage 5 ~ 240V DC/AC 4.5~28V DC
Load current 100mA Max. 50mA Max.
Current consumption --- 10mAMax.@ 24V 5mA @ 24V
Voltage drop 2.5V Max. 0.5V Max.@ 50mA (Resistive load) 0.1V Max.
Leakage current --- 50gA Max. ---
Frequency 200Hz 1000Hz 200Hz
Shock 30G 50G 30G
Vibration 90 m/s2 (9G), Double amplitude 1.5 mm
Insulation resistant DC 500V 100M [ (Lead wire to case)
Withstand voltage AC 1000V (50/60Hz) 1minute (Lead wire to case)
CE & Protection IP EN60947-5-2 IEC529 IP67(NEMA 6)
Indicator Red LED
Cable 2.8,2C,Gray Pur 2.8,3C,Black Pur
Temperature range -10 ~ 70 J
Protection circuit --- Reverse polarity; Surge suppression ---

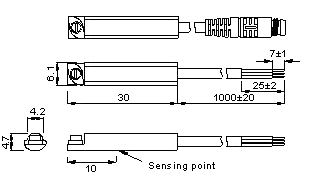

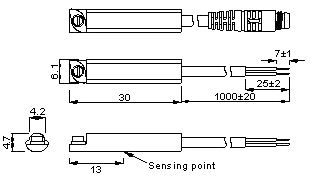

Dimensions
Reed Switch:
MS-76R
MS-76R-QD8
MS-76R-QD12
Solid N:
MS-76N
MS-76N-QD8
MS-76N-QD12
Solid P:
MS-76P
MS-76P-QD8
MS-76P-QD12
M8 & M12-Connector
2-Wire QD Link 2-Wire E-QD Link 3-Wire QD Link

Mounting Method : (1) 1-1 ~ 1~4 from up to down
(2) 2-1 ~ 2-4 from both sides
